CSB EVX12300 agm battery south africa is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life.

EVX means Electric Vehicle X (the meaning of Roman numeral X is satisfactory and plentiful). This series is a modern hi-tech energy application product.

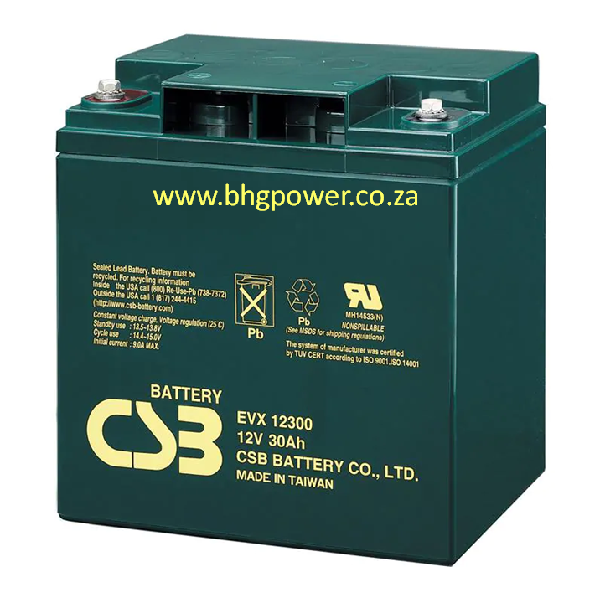

Introduction EVX12300 Battery

CSB EVX12300 Battery is a backup battery used for portable equipment and office and factory automation. The battery also working in conjunction with solar cells to make a decentralized power supply system. CSB Battery is small and lightweight that gives high performance making it very economical to use. In addition to these advantages, the sealed construction eliminates the necessity to fill the battery with water.

Nominal Voltage EVX12300

Nominal Capacity

Weight

Maximum Discharge Current Internal

Resistance

Short Circuit Current Maximum

Charge Current

Terminal types

Terminal Breaking Torque

Container Material

12V (6 cells per unit)

30 AH @20HR-rate to 1.75V per cell @25? (77?) Approx. 10.40 Kg (22.92 lbs)

400A (5sec) EVX12300

Approx. 7.9 m?

9.00A

I1 terminal to accept M5 bolt

59 Kgf·cm / 51 Ibf·in / 5.73 N·m

ABS (UL 94-HB)

Dimensions 166 × 125 × 175 cm
